Tabletop Vacuum Sealer
Capable of extending shelf life and preventing metal oxidation.

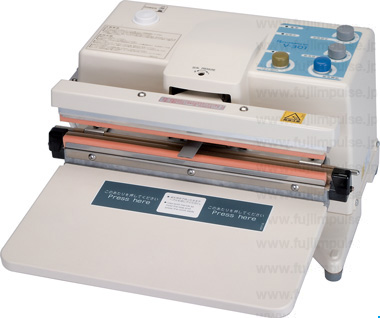

Photo of V-301

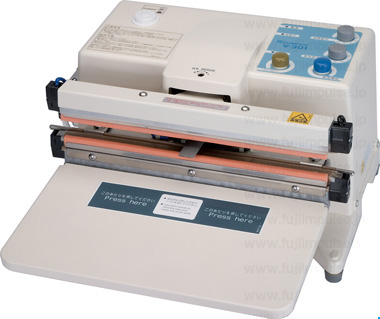

Photo of V-301-10DK
Main Features
Applications and Features:
Tabletop vacuum sealer
Operating method:
Hand-operated
Packaging type:
Seal only & vacuum
Daily use frequency as model selection guideline:
Up to 1,000 bags, hand-operated
Bag size :
Up to 30 cm (11.8 inches)
Latest type:
Type D
Compatible packaging materials (total thickness of two or more sheets):
V-301
PE : 0.4 mm (15.7 mil),
PP : 0.3 mm (11.8 mil),
NY : 0.3 mm (11.8 mil),
PVA : 0.3 mm (11.8 mil),
Other laminated materials : 0.4 mm (15.7 mil)
V-301-10DK
PE : 0.6 mm (23.6 mil),
PP : 0.4 mm (15.7 mil),
NY : 0.4 mm (15.7 mil),
PVA : 0.4 mm (15.7 mil),
Other laminated materials : 0.5 mm (19.7 mil)
■ Available for Various Applications
V-301 works well for maintaining the freshness of various foods and preventing oxidation of items such as parts, cloth, chemical medicine and precision machinery.
It is ideal in cases where complete vacuum packaging is not necessary but deairing is desirable to extend the shelf life and to keep contents from shifting.
Using high gas barrier packaging along with oxygen scavenger to deair the bag can create an oxygen-free packaging which improves preservative effect.
■ Deairing/Air-supply through Vacuum Pump
Exhaust velocity of the equipped vacuum pump is 22 L/min which enables it to reach the vacuum degree of −69 kPa.
Replacing IN side tube with OUT side tube enables it to supply air into the bag.
■ Safety Measures
Overheating Prevention
When power continues to be distributed to the heating element for about 3.0 seconds or more, the power switch turns off automatically and the power shuts off.
■ Simple Operation

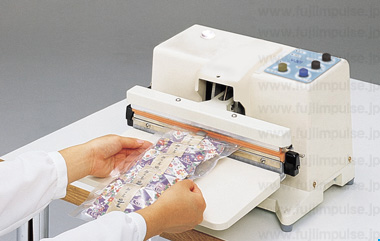

Insert nozzle into the bag, push down on the table and press VACUUM START. Nozzle returns automatically when vacuum is complete. Push down on the table again to complete sealing. You can select either TIMER or MANUAL as your vacuum method.
■ For Various Packaging Materials
Single side heating type V-301 (Total thickness less than 0.3 mm can be sealed)
Double side heating type V-301-10DK (Total thickness less than 0.4 mm can be sealed)
V-301 sealer can deal with high gas barrier packaging, static-shielding bag and antistatic bag.
■ Standard Filter Equipped
Foreign object inhaled from nozzle will be stopped in the filter.
Detachable filter makes regular cleaning easy.

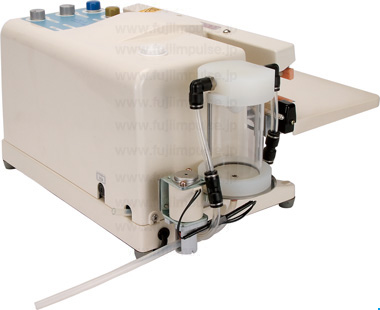

■ Optional Large Capacity Filter VF-220 for Packaging Watery Items
The standard filter can be replaced with an optional large capacity filter VF-220. With a capacity of 220 cc, it is ideal for vacuum packaging watery items. Manually drain the contents that have accumulated in the filter.
