Temperature-Controlled Semi-Automatic Impulse Sealer
High quality sealing with the ideal heat condition

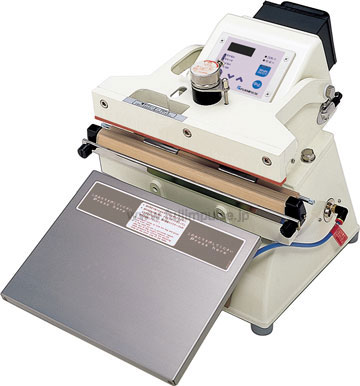

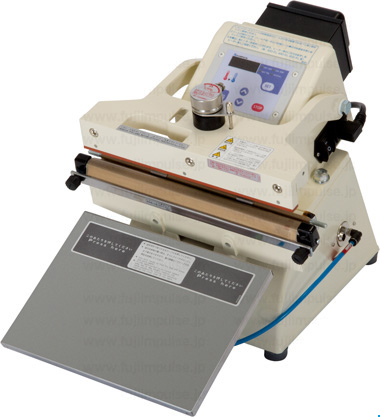

OPL-300-5
Model Lineup

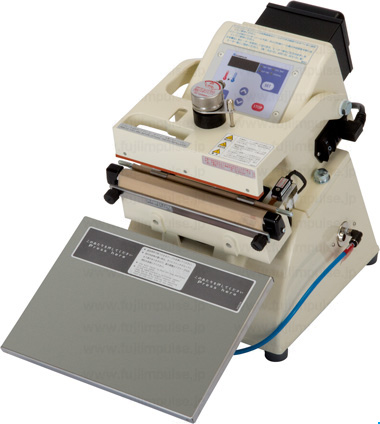

OPL-200-10
OPL-300-5

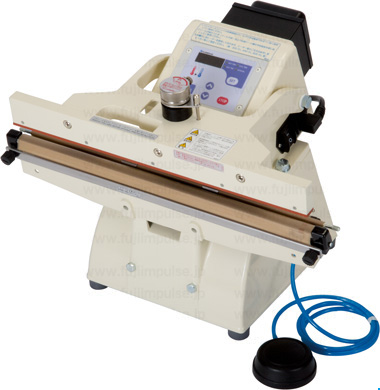

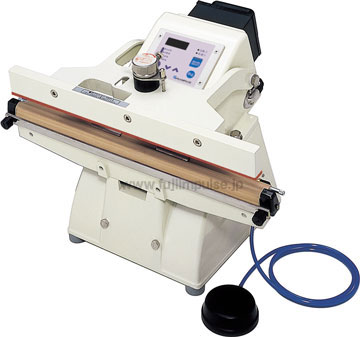

OPL-450-5

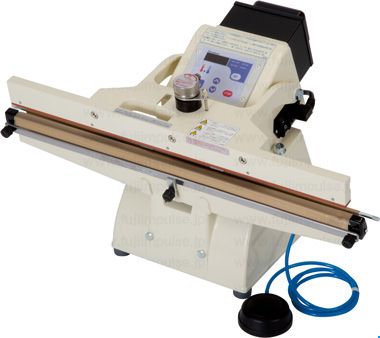

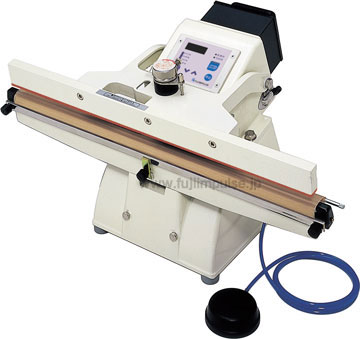

OPL-600-5
※Standard table is standard equipped to FA-450-5 only. Please see Specifications for the details.
Main Features
Applications and Features :
Semi-auto sealer with temperature control
Operating method:
Electric
Packaging type:
Seal only
Daily use frequency as model selection guideline:
3,000 bags, electric
Bag size (max.):
20, 30, 45, 60cm / 8, 12, 17.7, 23.6 inches
Latest type:
Type J
Compatible packaging materials (total thickness of two or more sheets)：
PE : 0.4mm/15.7mil,
PP : 0.3mm/11.8mil,
NY : 0.3mm/11.8mil,
PVA : 0.3mm/11.8mil,
other laminated materials : 0.4mm/15.7mil
Overview of OPL series
The OPL series is a table-top impulse sealer standard equipped with the ONPUL temperature controlling system developed by Fuji Impulse.
The OPL series sealer has four different sealing lengths in its lineup, enabling a wide variety of usage.

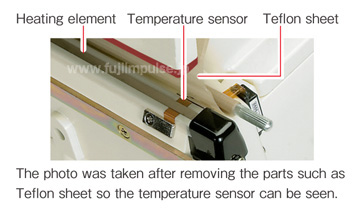

■ Temperature control using temperature sensor
The OPL series is a table-top impulse sealer standard equipped with the ONPUL temperature controlling system developed by Fuji Impulse. The OPL series sealer has four different sealing lengths in its lineup, enabling a wide variety of usage.

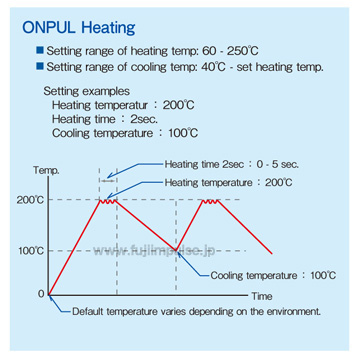

■ Ideal sealing condition
With the ONPUL System, a user can set the heating temperature to the temperature at which a film melts. This means that the user can increase the sealing strength. In addition, because only the required energy is used in the seal heating and cooling processes, it saves energy and increases work efficiency, as well as extend the product life of parts such as the heating element, Teflon sheet and glass tape.

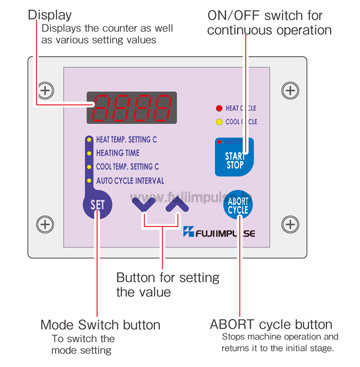

■ Simple operation
Use the touch panel on the control unit to set conditions such as the heating temperature. To set the settings, use the Mode Switch. After setting the appropriate sealing condition for the packaging material, select either automatic continuous operation or manual air-pedal operation. The OPL-200 and OPL-300 series of sealers also offer a selection of different methods with which to press the table switch plate. ※1
If a table is required for the OPL-450 and OPL-600 series of sealers, use the FA stand combined with a special table.
※1：When using the table-switch plate, set the air pedal under the table-switch plate. The OPL-200 and OPL-300 series of sealers are shipped with the air pedal set under the table-switch plate.
■ Good for a variety of packaging materials
The following model variations are available:Good for seal lengths of 200, 300, 450 and 600mm . as well as for seal widths of 5 and 10 mm .
Available only as a single heater type capable of sealing materials up to 0.3mm thick (total thickness of overlapping sheets).
Sealing an oxygen scavenger inside a gas-barrier material packaging can help extend a product life.

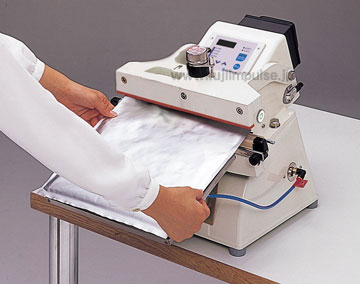

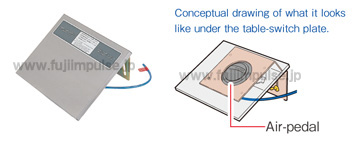

■ Table-switch plate
Users of the OPL-200 and OPL-300 series of sealers may use the attached table-switch plate instead of the operation-start switch.
The applied pressure may be adjusted according to the weight of the package content. When using the table-switch plate, set the air pedal under the table-switch plate.
The OPL-200 and OPL-300 series of sealers are shipped with the air pedal set under the table-switch plate.
The table-switch plate is standard-equipped on the OPL-200 and OPL-300 series of sealers, and can be installed only on these sealers.
Options
■ Table (optional): Choose a table for your work environment
We offer various tables as option based on your environment and model. While we do provide the best table for general expected settings for each model, optional tables are available in cases the standard item does not match your needs.
1. Standard table: This is a stainless, single-leaf table that attaches to the seal frame. There is no "600 standard table" as a standard table cannot be installed on a 600mm sealer.
2. Special Table: The Special Table attaches to the support pipe of the optional FA stand. It can support the weight of a heavy package. Height can be adjusted within the range of the support pipe. (See photo on this page explaining the FA stand) If a table is required for the OPL-450 and OPL-600 series of sealers, use the FA stand combined with a special table.
Name |
Dimensions (W × D) mm |
For 200&300 Table-switch plate |
280(11") × 210(8.3") |
200Standard table |
200(7.8") × 150(5.9") |
300Standard table |
300(11.8") × 150(5.9") |
450Standard table |
400(15.7") × 150(5.9") |
600Special table |
600(23.6") × 190(7.5") |
300 / 450Special table |
450(17.7") × 190(7.5") |
■ Printing Device: Printer (optional)
An electronic printer (two-line printing device) may be installed on the OPL series of sealers.
For information on the FEP-N2 series, see this page.
The following table shows models to which printers can be installed:
Impulse Sealer Model |
Inside |
Outside |
OPL-200-10 |
FEP-N2 |
Cannot be installed |
OPL-300-5 |
FEP-N2 |
FEP-OS-N2 |
OPL-450-5 |
FEP-N2 |
FEP-OS-N2 |
OPL-600-5 |
FEP-N2 |
FEP-OS-N2 |

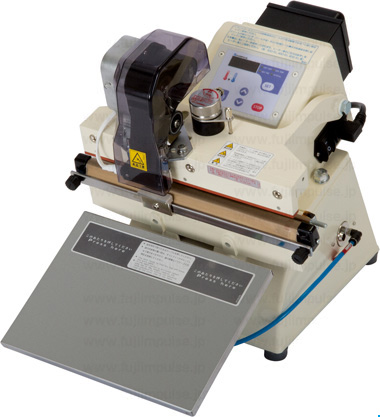

OPL-300-5
An example of the optional electric printer FEP-N2 being installed

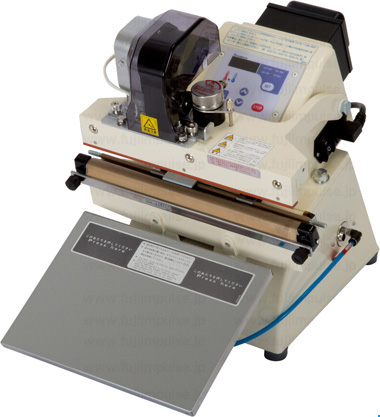

OPL-300-5
An example of the optional electric printer FEP-OS-N2 being installed

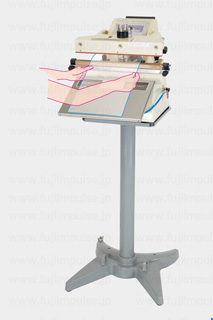

■ FA Stand(optional)
For securing a good place to install your sealer
The FA Stand comes in very handy when there is no appropriate place on the counter or table to place the sealer, or when you need to use a Special Table.
All sealers in the OPL series can be mounted on the FA Stand.

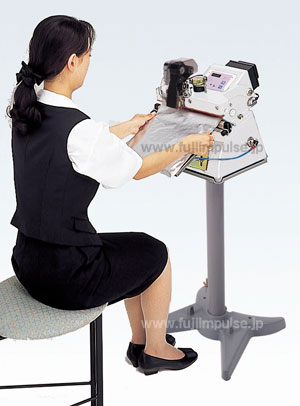

Photo: Example of OPL-300, FA Stand and FEP being used together
Safety Measures
■ Anti-finger jamming feature
Should an abnormal situation arise, it will be indicated on the LCD screen on the control unit (timer) and/or by an alarm sound. The clamping lever will not go down completely if a foreign object such as a finger is caught in the sealing area. The sealer is provided with a mechanism to return the lever to its initial position. ※1 To stop machine movement during operation, press the Stop button.
※1：Small fingers such as those of small children may not stop the clamping lever from coming down completely.
■ Control unit prevents overheating
To secure cooling temperature, the control unit is designed so that the cooling temperature cannot be set at a temperature higher than the heating temperature. If the cooling temperature is too close to the heating temperature, the product life of parts such as heating element, Teflon sheet will be shorter because of inadequate cooling process.
