LOS Series

Production Discontinued.

Information on the succeeding model is in preparation.

We apologize for the inconvenience, but please refer to the Japanese page.

Electric / Temperature Controlled Impulse Sealer for Large Size Packaging

Temperature Controlled Seal for Large Size Packaging

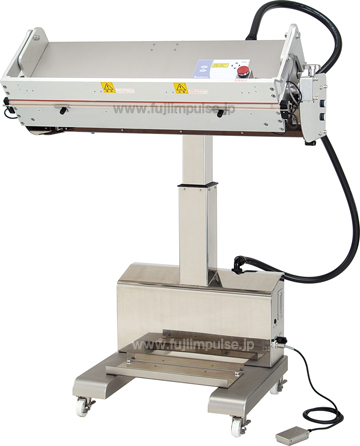

Photo of LOS-1000

LOS-1000

Details of each icon:

I-Heating Element

Main Features

Applications and Features:

Extra-length sealer

Operating method:

Electric/air-cylinder operated

Packaging type:

Seal only

Daily use frequency as model selection guideline:

Up to 1,000 bags, electric/air-cylinder operated

Bag size:

60 cm (23.6 inches), 80 cm (31.5 inches), 1 m (39.4 inches), 1.2 m (47.2 inches)

Latest type:

Type A

Compatible packaging materials (total thickness of two or more sheets):

Single-side heating type:

PE : 0.4 mm (15.7 mil),

PP : 0.3 mm (11.8 mil),

NY : 0.3 mm (11.8 mil),

PVA : 0.3 mm (11.8 mil),

other laminated materials : 0.4 mm (15.7 mil)

Double-side heating type:

PE : 0.6 mm (23.6 mil),

PP : 0.4 mm (15.7 mil),

NY : 0.4 mm (15.7 mil),

PVA : 0.4 mm (15.7 mil),

other laminated materials : 0.5 mm (19.7 mil)


Standard equipped with heating-temperature control

Setting the ideal sealing condition
The most prominent feature of the Onpul System is the ability to set and maintain the ideal sealing condition.
The heating temperature setting is made possible through the use of a high-sensitivity temperature sensor for temperature control, and a microcomputer controller.
You can now complete the heating process at just the right temperature for melting the film regardless of the air temperature or fluctuations in the machine temperature.
Seal heating temperature setting range: 60 to 250 ℃

Seal cooling temperature setting range: Between 40 ℃and the seal heating temperature. Note*

*Note  The seal-cooling temperature must be set at a value lower than the user-defined heating temperature setting. If the cooling temperature is set at a value too close to the heating temperature, cooling will not take place and result in the shortening of the life of some parts, including the Teflon part.

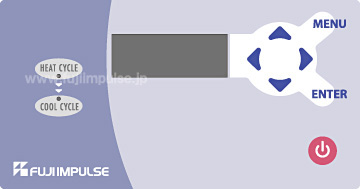

Easy-to-operate microcomputer controller

The selection and setting of work method and vacuum method, as well as of gas-flush method and its frequency, are all controlled at the microcomputer controller. Simply press the touch panel buttons for the settings.

Use of I-heating element

Use of I-heating element, which expands relatively little when heated, reduces the chance of the heating element breaking in the middle. Its use also prolongs the life of peripheral components such as the temperature sensor that comes in contact with the heating element.

Click here to learn more about I-Heating Elemnt.

Adjustable head height

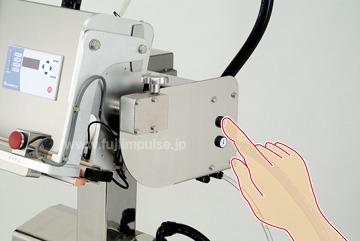

The height of the head of the sealer can be adjusted to suit the package content by operating the buttons on the side of the machine.

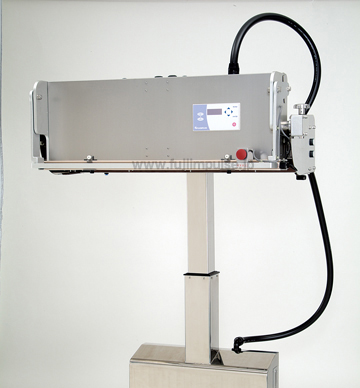

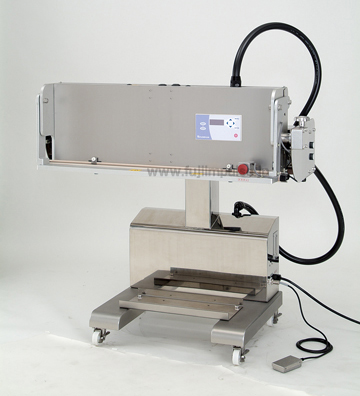

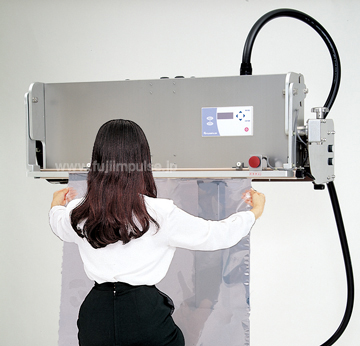

・  When the bag is set vertically to the head: 800 to 1370 mm

・  When the bag is set horizontally to the head:1020 to 1590 mm

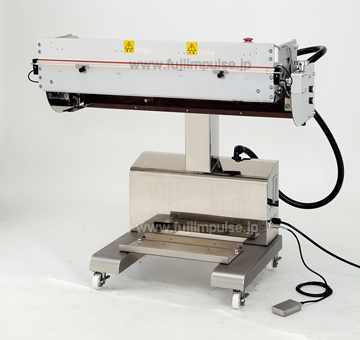

Tilting the head angle

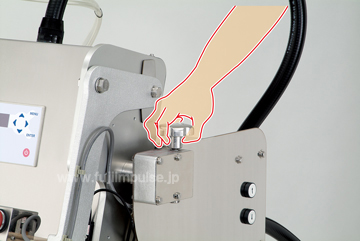

By turning the adjuster knob, the tilt angle of the head can be variably adjusted between 0 and 90 degrees to suit the package content. For example, when packaging powders, tilting down the sealer head will allow the sealing to complete without powder spilling from the bag opening.

Integrated exhaust system

The exhaust air from both the driving compressor and the vacuum pump is released from the machine through a 5-meter (16 feet) 12⌀ tube.

Disconnection alarm

In the event the heating element is disconnected, the LCD screen on the microcomputer controller will alarm the user.

Options

Tension arm

Tension arms can be set at both sides of the bag. The tension arms spread open going into the sealing process to hold the bag straight and pulled tightly. Because the sealing is conducted with the bag pulled straight, the sealed finish is clean with fewer chances of failure.

The photo above shows LOS-600NT (with vacuum & gas-flush functions).

2 line-printing device: Manufacturer option

"At the time of ordering, the user can choose to have the exterior 2-line printing device FEP-A installed as a manufacturer option.(It cannot be installed after the purchase.)
This allows the printing of texts and dates such as "Best before MMDDYY" and "Sell by MMDDYY."
FEP-A is a hot-print-type printer that utilizes heated types to print carbon.

Safety Features

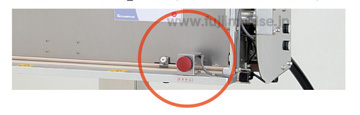

Equipped with emergency stop switch

In an emergency, press the Emergency Stop Switch to turn off the breaker and shut off the power. This will return the lever to its initial position.

Casters with a locking mechanism

The standard-equipped casters with a locking mechanism make moving from one work area to another easy, while providing a steady work setting once the machine is situated.
