Optional welding gun for NS-300

 

 

Main Features

■  As in the FL gun, air produced by an electric rotary blower inside the NS-300 is heated to a temperature sufficient for welding by a heating element in the interior of RL guns.

■  With the RL gun it is also possible to attach the sperical high-speed nozzles. (sold seperately / Please see Options.) These high-speed nozzles allow work to progress faster and with a cleaner finish than the standard nozzle attached to the FL gun.

 

■ Usage examples include

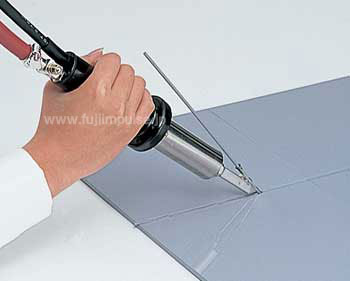

The rod-shaped RL Gun is good for the box interior welding work (doing corners or duct lining), or any work that requires you work in narrow places without much space to move your hands.

 

Standard nozzles (in accessories)

3 mm Nozzle (Standard)

3 mm nozzle (1piece) is attached on the welding gun.

 

4 mm Nozzle (Standard)

4 mm nozzle (1piece) is included in accessories.

 

Curved nozzle

Curved nozzle (1piece) is included in accessories.

 

Options

High-speed 3 mm; single nozzle

 

High-speed 3 mm; double nozzle

 

Temporary welding nozzle

 

3 mm long nozzle

 

4 mm long nozzle

 

Specifications

Power source V	Power consumption W	Machine dimensions mm W × D × H	Machine weight kg
110/220	600	320 (12.6") × 60 (2.4") × 60 (2.4")	0.6 (1.3 Lbs)
