Semi Automatic Long Size Sealer
Footswitch Operated Sealer for Large Size Packaging

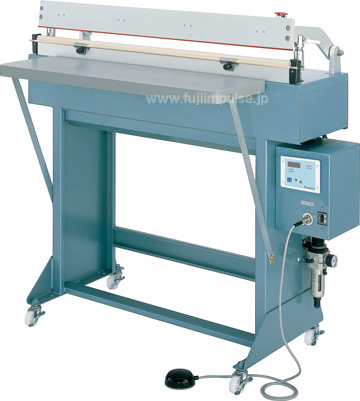

Photo of FiF-1000A
Main Features
Applications and Features:
Extra-length sealer
Operating method:
Foot-operated
Packaging type:
Seal only
Daily use frequency as model selection guideline:
Up to 1,000 bags, foot-operated
Bag size (max.):
80 cm (31.5 inches), 1 m (39.4 inches), 1.2 m (47.2 inches),1.5 m (59.1 inches)
Latest type:
Type A
Compatible packaging materials (total thickness of two or more sheets):
Single-side heating type:
PE : 0.4 mm (15.7 mil),
PP : 0.3 mm (11.8 mil),
NY : 0.3 mm (11.8 mil),
PVA : 0.3 mm (11.8 mil),
other laminated materials : 0.4mm (15.7 mil)
Double-side heating type:
PE : 0.6 mm (23.6 mil),
PP : 0.4 mm (15.7 mil),
NY : 0.4 mm (15.7 mil),
PVA : 0.4 mm (15.7 mil),
other laminated materials : 0.5 mm (19.7 mil)
■Overview of the FiF-A series
FiF-A series is an electric-powered large size sealer, capable of making seals of 0.8 to 1.5 meters.
Set the heating and cooling times for the bag being used, and lightly step on the footswitch to produce a clean, strong seal.
■ Easy opereation
FiF-A series is an electric-powered large size sealer. It is air-cylinder driven and operated using foot switch.
Use the control unit to adjust heating and cooling times accordingly on the material, type, and thickness of the bag being used. Set the bag in the sealing area and lightly step on the footswitch to operate the air cylinder to lower the crimping lever.
After the set heating and cooling are completed, the crimping lever return to the initial position to reveal a clean, strong seal.
The FiF-A series comes standard equipped with a convenient work table for the sealing process.
■ A comprehensive product lineup
We offer a comprehensive lineup of models to accommodate a variety of bag sizes (widths), thickness and materials.
Different models are available for seal lengths of 1000, 1200 and 1500 mm (3.3, 3.9 and 4.9 ft), as well as for seal widths of 5 and 10 mm (1/5 and 2/5 inches).
In addition to a single heater type capable of sealing materials up to 0.3 mm thick (total thickness of overlapping sheets), there is a double heater type capable of sealing thick or laminated bags up to 0.4mm thick (total thickness of overlapping sheets).
■ Use of I-heating element
Use of I-heating element, which expands relatively little when heated, reduces the chance of the heating element breaking in the middle. Its use also prolongs the life of peripheral components such as the temperature sensor that comes in contact with the heating element.
Click here to learn more about I-Heating Elemnt.
This machine needs to be connected with the outside air source
Compressor (Option):
0.75 kW, 80 L/min, 0.5 MPa or greater
Safety Measures
■ Equipped with emergency stop switch
In an emergency, press the Emergency Stop Switch to turn off the breaker and shut off the power. This will return the lever to its initial position.
■ Casters with a locking mechanism
The FiF series of sealers comes standard-equipped with casters with a locking mechanism that make moving from one work area to another easy, while providing a steady work setting once the machine is situated.
